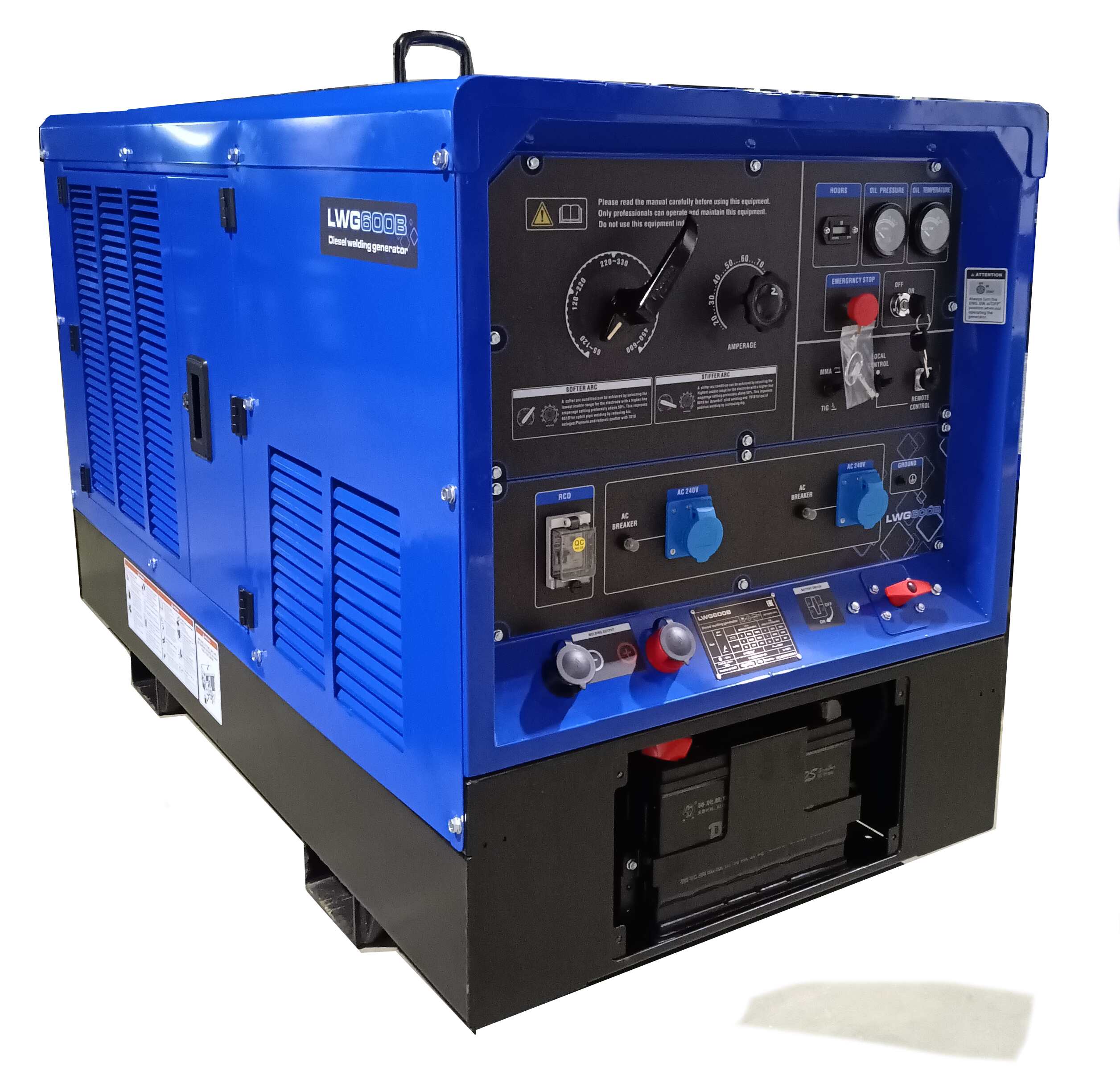

Powerful and Versatile Pipeline Welding Machine for Field-Based Work

Name: Powerful and Versatile Pipeline Welding Machine for FieldBased Work
Brand: GENWELD
Price: 15000 USD

Quality Powerful and Versatile Pipeline Welding Machine for Field-Based Work wholesale

Brand Name : GENWELD

Model Number : LWG600B

Certification : CE

Place of Origin : China

MOQ : One set

Price : USD 15000-20000 SET

Payment Terms : L/C, T/T

Supply Ability : 20 SETS PER MONTH

Delivery Time : 8-10WEEKS AFTER RECEIVED 30% PREPAYMENT

Packaging Details : Carton plus fumigation-free wooden cage, Packing dimension:1835*925*1135mm

Welding process : MMA(Cellulose down-welding)/TIG/Gouging

Engine : 4 cylinders, air-cooled

Generator Output : Single phase 240V/4.5Kw

Welding current range : 65-600A

Electrode code : 2.5-10mm

Net Weight : 880KG

Protection Class : IP23

Model : PW-2000

Cooling Method : Air Cooling

Packing Size : 1835×925×1135mm

Fuel Type : Diesel

Fuel tank : 100L

Engine Brand : Beinei F4L912

Rated Duty Cycle : 60%/600A/44V

Contact Now

Product Introduction:

For field-based work that requires single-operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor to perform critical repair and maintenance functions,LWG600B Air-cooling Welding Generator is the most reliable, versatile machine available to keep your worksite equipment fully functional and make you more productive throughout the day.

Specification Sheet:

Welding parameters	No-load voltage (V)	DC 90
	Welding current adjustment range (A)	65-600
	Rated voltage (V)	44
	Rated duty cycle (%)	60
	Electrode code (mm)	2.5-10
Auxiliary power output parameters	Number of phases	Single
	Rated frequency (HZ)	60
	Rated voltage (V)	120	240
	Rated power (KW)	2.0	4.1
	Power factor	1
	Rated current	17	17
Engine parameters	Brand	Beinei
	Model	F4L912
	Engine type	Four-cylinder, in-line, naturally aspirated, air-cooled, four-stroke
	Bore*stroke (mm)	100*120
	Displacement (cc)	3770CC
	Compression ratio	17:01
	Power/speed	Max:42kW/1800rpm；Rated:38kW/1800rpm
		Max:35kW/1500rpm；Rated:32kW/1500rpm
Whole unit	Fuel tank	100liters
	Dimension	17248231058mm
	Weight	880kg
	Protection class	IP23
